Color-Keyed
Connectors for All Copper Cable
Short Barrel Two Hole Lugs - 600V to 35KV Applications

Cat
No.		 Cable
Size		Stud
Size		 Color
Code		 Dimensions (in.)

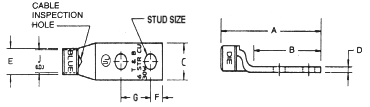

ABCD EFG
*54204

*54205

*54206

*54207

*54208

 #8 Str. or #8 Weld
37/24, 23 Navy
#6 Str. or #6 Weld
61/24, 30 Navy
#4 Str.
91/24, 40-50 Navy
#2 Str. or #4 Weld
125/24, 60 Navy
#1 Str. or #2 Weld
175/24, 75 Navy		 #10

1/4

1/4

1/4

1/4

 Red

Blue

Gray

Brown

Green

 1.88

1.98

2.03

2.13

2.13

 1.18

1.28

1.28

1.28

1.28

 .42

.44

.52

.59

.68

 .08

.08

.10

.11

.11

 .26

.30

.37

.41

.47

 .25

.25

.25

.25

.25

 .63

.63

.63

.63

.63
*54255

*54209

54210

*54260

54211

 1/0 AWG or #1 Weld
225/24, 100 Navy
1/0 AWG or #1 Weld
225/24, 100 Navy
2/0 AWG or 1/0 Weld
275/24, 125 Navy
2/0 AWG or 1/0 Weld
275/24, 125 Navy
3/0 AWG or 2/0 Weld
375/24, 150 Navy		 5/16

3/8

3/8

1/2

3/8

 Pink

Pink

Black

Black

Orange

 2.88

2.88

2.93

3.83

2.94

 1.93

1.93

1.93

3.00

1.84

 .75

.75

.83

.83

.94

 .12

.12

.13

.13

.14

 .52

.52

.57

.57

.63

 .38

.38

.38

.50

.38

 .88

1.00

1.00

1.75

1.00
*54265

54212

*54270

54213
*54275		 3/0 AWG or 2/0 Weld
375/24, 150 Navy
4/0 AWG or 3/0 Weld
450/24, 2000 Navy
4/0 AWG or 3/0 Weld
450/24, 200 Navy
250 kcmil, 250 Navy
250 kcmil, 250 Navy		 1/2

3/8

1/2

3/8
1/2		 Orange

Purple

Purple

Yellow
Yellow		 3.94

3.18

4.25

3.28
4.19		 3.00

1.93

3.00

1.93
3.00		 .94

1.03

1.03

1.13
1.13		 .14

.14

.14

.14
.17		 .63

.70

.70

.77
.77		 .50

.38

.50

.38
.50		 1.75

1.00

1.75

1.00
1.00
*58265

54214
*54280
54215
*54282		 4/0 Weld
550/24
300 kcmil
300 kcmil, 300 Navy
350 kcmil, 350 Navy
350 kcmil, 350 Navy		 1/2

3/8
1/2
3/8
1/2		 Yellow

White
White
Red
Red		 4.45

3.38
4.45
3.48
4.55		 3.00

1.93
3.00
1.93
3.00		 1.25

1.25
1.25
1.36
1.36		 .15

.15
.15
.18
.18		 .85

.85
.85
.93
.93		 .50

.38
.50
.38
.50		 1.75

1.00
1.75
1.00
1.75
*54216

58277
54218
*54286
54220		 400 kcmil
925/24, 400 Navy
400 Weld
500 kcmil, 500 Navy
500 kcmil, 500 Navy
600 kcmil		 3/8

1/2
3/8
1/2
3/8		 Blue

Black
Brown
Brown
Green		 3.88

5.00
3.93
5.00
4.08		 1.93

3.00
1.93
3.00
1.93		 1.41

1.61
1.61
1.61
1.75		 .17

.22
.22
.22
.24		 .96

1.10
1.10
1.10
1.20		 .38

.50
.38
.50
.38		 1.00

1.75
1.00
1.75
1.00
*54289
*54291
58281
*54223		 600 kcmil
700 kcmil
1325/24
750 kcmil		 1/2
1/2
1/2
1/2		 Green
Pink
Pink
Black		 5.15
5.10
5.15
5.23		 3.00
3.00
3.00
3.00		 1.75
1.84
1.81
1.94		 .24
.23
.28
.27		 1.20
1.23
1.25
1.33		 .50
.50
.50
.50		 1.75
1.75
1.75
1.75
*54224
*54226

*54228		 800 kcmil, 800 Navy
900 kcmil
1925/24
1000 kcmil, 1000 Navy		 1/2
1/2

1/2		 Orange
Yellow

Black		 5.40
5.50

5.45		 3.00
3.00

3.00		 2.01
2.18

2.27		 .27
.31

.30		 1.38
1.50

1.55		 .50
.50

.50		 1.75
1.75

1.75
* Available with undrilled tongues.
Consult EPS for price, delivery and minimum ordering quantities.
U.L. Listed E9809 for code stranded and 24 gauge flex
