Color-Keyed Connectors for All Copper Cable

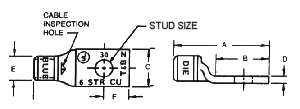

Cat. No.	Cable Size	Stud Size	Color Code	Dimensions (in.)
				A	B	C	D	E	F
54104 54130 54131 *54132	#8 Str. #8 Weld 37/24 23 Navy	#10 1/4 5/16 3/8	Red	1.14 1.18 1.31 1.31	.52 .63 .66 .66	.39 .45 .56 .56	.08 .07 .05 .05	.27 .27 .27 .27	.22 .25 .28 .28
54134 54105 54135 *54136	#6 Str. #6 Weld 61/24 30 Navy	#10 1/4 5/16 3/8	Blue	1.21 1.21 1.39 1.39	.55 .55 .68 .68	.44 .44 .60 .60	.08 .08 .05 .05	.31 .31 .31 .31	.23 .23 .30 .30
54138 54106 54139 *54140	#4 Str. 91/24 40-50 Navy	#10 1/4 5/16 3/8	Gray	1.36 1.36 1.40 1.40	.62 .62 .66 .66	.55 .55 .61 .61	.08 .08 .07 .07	.37 .37 .37 .37	.25 .25 .31 .31
54107 54142-TB 54143-TB *54145-TB	#2 Str. #4 Weld 125-24 60 Navy	1/4 5/16 3/8 1/2	Brown	1.50 1.73 1.65 1.92	.65 .88 .80 1.08	.59 .59 .59 .75	.11 .11 .11 .06	.41 .41 .41 .41	.25 .25 .31 .31
54108 54147 54148 *54150	#1 Str. #2 Weld 175/24 75 Navy	1/4 5/16 3/8 1/2	Green	1.50 1.73 1.78 2.10	.65 .88 .93 1.25	.68 .68 .68 .76	.11 .11 .11 .11	.47 .47 .47 .47	.25 .38 .38 .50
54152-TB 54153-TB 54109 *54155-TB	1/0 AWG #1 Weld 255/24 100 Navy	1/4 5/16 3/8 1/2	Pink	1.60 1.83 1.88 2.20	.65 .88 .93 1.25	.75 .75 .75 .75	.13 .13 .13 .13	.52 .52 .52 .52	.25 .38 .38 .50
54157 54158 54110 *54160	2/0 AWG 1/0 Weld 275/24 125 Navy	1/4 5/16 3/8 1/2	Black	1.65 1.88 1.93 2.25	.65 .88 .93 1.25	.83 .83 .83 .83	.12 .12 .12 .12	.57 .57 .57 .57	.25 .38 .38 .50
54162-TB 54163-TB 54111 *54165-TB	3/0 AWG 2/0 Weld 325/24 150 Navy	1/4 5/16 3/8 1/2	Orange	1.75 1.98 2.03 2.35	.65 .88 .93 1.25	.92 .92 .92 .92	.13 .13 .13 .13	.63 .63 .63 .63	.25 .38 .38 .50
54167 54168 54112 *54170	4/0 AWG 3/0 Weld 450/24 200 Navy	1/4 5/16 3/8 1/2	Purple	1.90 2.13 2.18 2.50	.65 .88 .93 1.25	1.03 1.03 1.03 1.03	.14 .14 .14 .14	.70 .70 .70 .70	.25 .38 .38 .50
54172-TB 54173 54174 *54113	250 kcmil 250 Navy	1/4 5/16 3/8 1/2	Yellow	2.00 2.23 2.28 2.60	.65 .88 .93 1.25	1.13 1.13 1.13 1.13	.14 .14 .14 .14	.77 .77 .77 .77	.25 .38 .38 .50
58161 58162 58163 58165 *58166	4/0 Weld 550/24	1/4 5/16 3/8 1/2 5/8	Yellow	2.23 2.33 2.38 2.70 3.03	.78 .88 .93 1.25 1.58	1.25 1.25 1.25 1.25 1.25	.15 .15 .15 .15 .15	.85 .85 .85 .85 .85	.38 .38 .38 .50 .63
54178 54179 54114 *54181	300 kcmil 300 Navy	5/16 3/8 1/2 5/8	White	2.33 2.38 2.70 3.03	.88 .93 1.25 1.58	1.25 1.25 1.25 1.25	.15 .15 .15 .15	.85 .85 .85 .85	.38 .38 .50 .63
*58171	300 Weld 775/24	1/2	Red	2.80	1.30	1.36	.18	.93	.50
54115 *54183	350 kcmil 350 Navy	1/2 5/8	Red Blue	2.80 3.13	1.25 1.58	1.36 1.36	.18 .18	.93 .93	.50 .63
54116 *54185	400 kcmil 400 navy	1/2 5/8	Blue	3.20 3.53	1.25 1.58	1.41 1.41	.17 .17	.96 .96	.50 .63
*58177	400 Weld 925/24	1/2	Black	3.28	1.25	1.61	.22	1.10	.50
54118 *54187	500 kcmil 500 Navy	1/2 5/8	Brown	3.25 3.58	1.25 1.58	1.61 1.61	.22 .22	1.10 1.10	.50 .63
*58180	500 Weld 1100/24	5/8	Green	3.73	1.58	1.75	.24	1.20	.63
*54120	600 kcmil	5/8	---	3.73	1.58	1.75	.24	1.20	.63
*54122	700 kcmil	5/8	Pink	3.68	1.58	1.84	.23	1.26	.63
*58182	1325/24	5/8	Pink	3.73	1.58	1.81	.28	1.25	.63
*54123	750 kcmil	5/8	Black	3.80	1.58	1.94	.27	1.33	.63
*54124-TB	800 kcmil 800 Navy	5/8	Orange	3.98	1.58	2.01	.27	1.38	.63
*54126	900 kcmil 1925/24	5/8	Yellow	4.08	1.58	2.17	.31	1.50	.63
*54128	1000 kcmil 1000 Navy	5/8	---	4.03	1.58	2.27	.30	1.55	.63

* Available with undrilled tongues. Consult EPS for price, delivery and quantities.

U.L. Listed E9809 for code stranded and 24 gauge flex
